What We Do
Indoor Climate System
Indoor Climate System

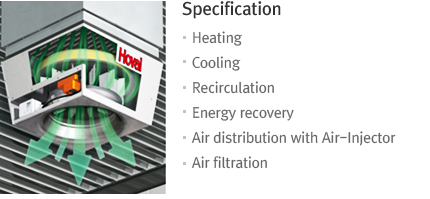

RoofVent®
LHW- RoofVent® LHW incorporates a plate heat exchanger that recovers energy from the extract air and transmits it to the supply air.
| Technical Data | LHW-5 | LHW-8 | LHW-10 |
|---|---|---|---|
| Air flow rate(㎥/h) | 5,000 | 8,000 | 10,000 |
| Heating Capacity(kcal/h) | Up to 55,087 | Up to 116,470 | Up to 143,496 |
| Cooling Capacity(kcal/h) | - | - | - |
| Range(m x m) | 21 x 21 | 26 x 26 | 32 x 32 |
| Weight(㎏) | 491 | 692 | 706 |
Description
- RoofVent® is a roof ventilation unit for supplying fresh air and removing extract air. RoofVent® LHW incorporates a plate heat exchanger that recovers energy from the extract air and transmits it to the supply air.
LHKW- RoofVent® LHKW is similar in design to RoofVent® LHW: It supplies fresh air and maintains the right temperature in high spaces and incorporates a plate heat exchanger.
| Technical Data | LHKW-5 | LHKW-8 | LHKW-10 |
|---|---|---|---|
| Air flow rate(㎥/h) | 5,000 | 8,000 | 10,000 |
| Heating Capacity(kcal/h) | Up to 55,087 | Up to 116,470 | Up to 143,496 |
| Cooling Capacity(kcal/h) | Up to 39,465 | Up to 79,619 | Up to 98,203 |
| Range(m x m) | 21 x 21 | 26 x 26 | 32 x 32 |
| Weight(㎏) | 521 | 744 | 758 |

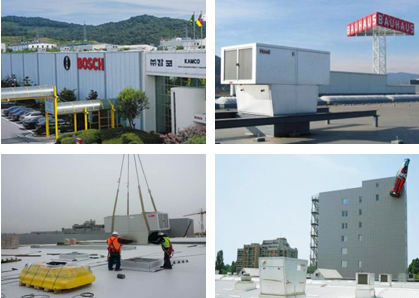

On-Site Installation

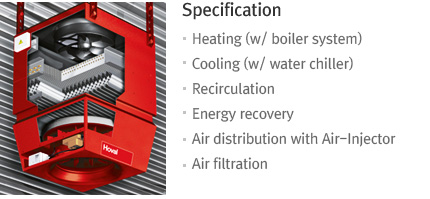

TopVent®
DHV- TopVent® DHV has been specially developed for use in highspaces. Thanks to its high performance and efficient airdistribution, the unit has a large coverage area. Because fewer units are needed, investment and installation costs are lower.
| Technical Data | DKV-5 | DKV-10 |
|---|---|---|
| Air flow rate(㎥/h) | 4,100 | 10,000 |
| Heating Capacity(kW) | Up to 68,545 | Up to 143,396 |
| Cooling Capacity(kW) | Up to 39,465 | Up to 98,203 |
| Range(m x m) | 19 x 19 | 32 x 32 |
| Weight(㎏) | 139 | 210 |

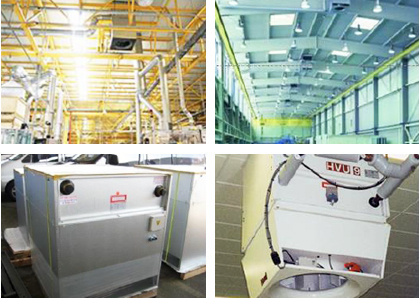

On-Site Installation
- Three unit sizes, two-speed fans, different heater battery types and a whole string of accessories provide a tailored solution for any large space. Special batteries (steam, electric heating coils) are also available.
DKV- TopVent® DKV is similar in design to recirculation air heating unit TopVent® DHV, but it can be used for cooling as well as heating. The major difference is the built-in condensate separator. In addition, the unit is insulated.
| Technical Data | DHV-5 | DHV-10 |
|---|---|---|
| Air flow rate(㎥/h) | 5,000 | 10,000 |
| Heating Capacity(kW) | Up to 55,087 | Up to 143,396 |
| Cooling Capacity(kW) | - | - |
| Range(m x m) | 19 x 19 | 32 x 32 |
| Weight(㎏) | 95 | 152 |
On-Site Installation
- TopVent® DKV, too, is available with numerous output ratings and installed in various places.
- TopVent® DKV units are suitable for heating and cooling.

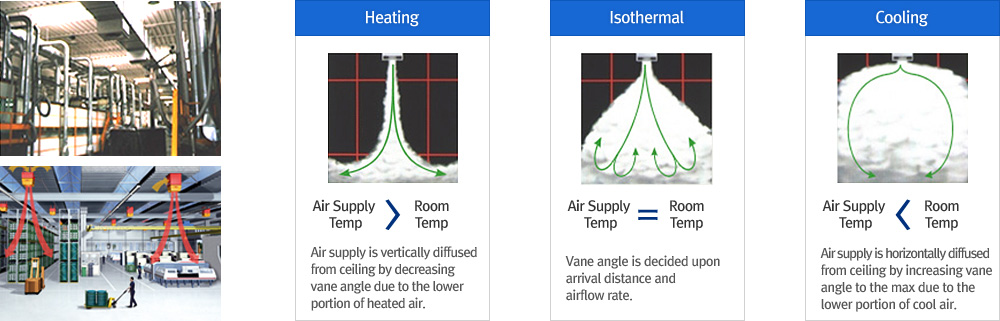

Air-Injector
- Hoval Air-Injector provides constant, draught-free airflow into occupied area regardless of air temperature and volume, and used for high-rise structures such as production hall, gym, Hall Lobby, etc.
| Technical Data | 3 | 10 |
|---|---|---|
| Air flow rate(㎥/h) | 3,000 | 10,000 |
| Mounting Height(m) Max | 8.5 | 13.0 |
| Noise Levels(dBA) Max | 65 | 69 |
| Range(m x m) Max | 17 x 17 | 32 x 32 |
| Weight(㎏) | 34 | 65 |
On-Site Installation
